Visualizations: Boards

The main visualization in TopLeft is the Kanban board. Kanban boards clearly show the stages that work goes through from beginning to end. Work begins on the left and moves to the right as it progresses until it is complete.

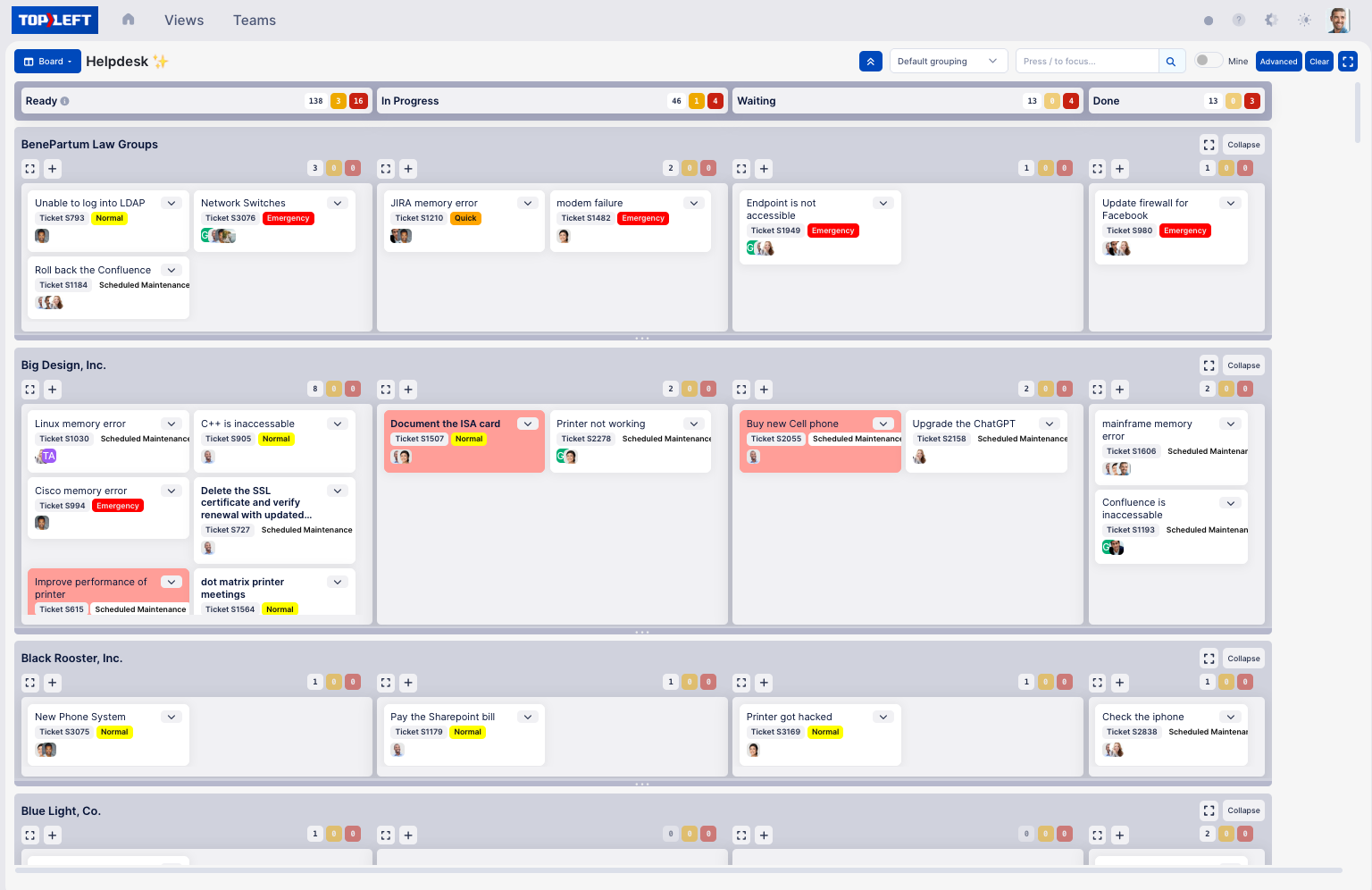

A Helpdesk Kanban board with status columns and a swimlane per client company

Columns

A column represents a single stage in a team's workflow. The work in that stage is represented by cards. Work is shown in a column when the work item's status is assigned to that column.

The order of the cards in the column represents the order in which the work should be completed- work to be done first is at the top.

You can do the following things within columns:

  • Drag cards from one column to another one. This will update the status of the work in your PSA. If there are multiple statuses mapped to the column, a prompt with the list of available statuses will be shown when you drop the card.
  • Move several cards at once. See Move several cards.
  • Drag cards within the column to reorder them, indicating which work should be done first. (This is not available if the View's automatic ordering option is enabled.)
  • Review counts of total cards, cards with warnings (in orange), and cards with errors (in red).
    A column header showing 138 cards, 3 with warnings and 16 with errors
    For example, in this column there are 138 cards total, 3 with warnings, and 16 with errors. (Cards with both warnings and errors are counted as errors only.)
  • View an administrator's comment about a column by hovering the icon:
    The info icon
  • Zoom into the column by clicking the icon:
    The zoom icon
  • Create a new record by clicking the icon:
    The plus icon

Move several cards

To change the column of several cards in one drag:

  1. Hold Ctrl (Cmd on a Mac) and select each card. To pick a run of cards in one column, select the first, then hold Shift and select the last.
  2. A bar shows how many you picked. Select Clear or press Escape to start again.
  3. Drag any one of them to the new column. The rest go with it.

Three cards picked in the Triage column, and the bar reading "3 selected. Drag one to move them all."

If the column has several statuses, TopLeft asks which one to use. A move of several cards changes only their column, so drop them in their own lane. You can move up to 250 cards at once. When the move is done, TopLeft says how many moved and lists any your PSA refused.

Cards

Work is represented on a board as a card:

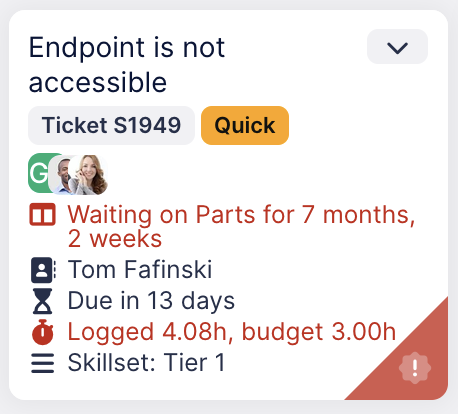

A card showing its title, priority, assignees, status age, contact, due date, logged hours and skillset

The top section of the card shows the record's title, priority, and assigned members. When the view shows priority as a label, select the label to change the record's priority. This works on ConnectWise tickets, Autotask tickets and tasks, and HaloPSA tickets, for anyone whose licence lets them edit records.

The priority menu open from a card's priority label

The bottom section of the card shows a variety of details about the record. This list is customizeable by administrators.

Click the card to open an editor to change various details on the record. See Editing Records.

On a ticket that belongs to a project, select the project or phase on the card to open that record's editor.

The appearance of the card can be changed using the Conditional Formatting feature.

If the card has a warning, such as an approaching due date or using most of its budget, it will have an orange ribbon like this:

An orange warning ribbon in a card's corner

If it has an error, such as a blown due date, it will have a red ribbon like this:

A red error ribbon in a card's corner

Click the dropdown to show a menu of options about the card.
The card's dropdown arrow

Click the record number to copy the number to your clipboard.
A card's record number, Ticket S713

Groups

Records can be shown in groups, as in the screenshot at the top of the page, to make them more organized and easy to understand.

You can do the following things within groups:

  • Drag cards between groups to update the dragged record. For example, if you drag it from a priority 3 to a priority 2 group, the record is changed to priority 2 in your PSA.
  • Drag groups to reorder them.
  • Drag the handle on the bottom of the group to resize it.
  • Zoom into the group by clicking the icon:
    The zoom icon
  • Click the icon to collapse or expand all groups:
    The collapse and expand all groups icon

Updated October 31, 2026
